15MM Diameter 360 Degree Magic Vertical RGB Tube
1. The 15MM diameter 3d Led Tube is the SPI version which is compatible of Madrix Nebula Controller
2. 0.5M, 1M, 1.5M Length are available for the RGB Led Disco Lights, Most of our clients used the 1M length
3. 4 leds/Pixels , 8pixels for 0.5M, 16pixels for 1M, 24pixels for 1.5M
4. ISEELED adopt the clear pc for the DMX 3d Led Tube , two cables are on the top for easy connection
5. 50-55cm connect cable is for each 3D LED Tube Light
6. SPI 3D LED Tube is DC15V input working voltage
Application of 15MM Diameter 360 Degree Magic Vertical RGB Tube
3D Vision figure, Interior design for clubs, themed environments, Stage video elements for intimate or large concert productions, Television awards and game shows, Video Art projects
|
Model NO.
|
LED-3DT30DMX3208
|
LED-3DT30DMX6416
|
LED-3DT30DMX9624
|
LED-3DT30DMX12832
|
|
Diameter
|
30mm
|
30mm
|
30mm
|
30mm
|
|
Length
|
500mm
|
1000mm
|
1500mm
|
2000mm
|
|
Color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
|
LED QTY
|
32LEDs
|
64LEDs
|
96LEDs
|
128LEDs
|
|
Pixel QTY
|
8 Pixels
|
16 Pixels
|
24 Pixels
|
32 Pixels
|
|
Tube Qty/Universe
|
20 Tubes
|
10 Tubes
|
7 Tubes
|
5 Tubes
|
|
Voltage
|
DC15V
|
DC15V
|
DC15V
|
DC15V
|
|
Power
|
MAX=8W
|
MAX=16W
|
MAX=24W
|
MAX=32W
|
|
Protocol
|
DMX512
|
DMX512
|
DMX512
|
DMX512
|
|
Address Setting
|
Manually
|
Manually
|
Manually
|
Manually
|
|
Protection
|
IP65
|
IP65
|
IP65
|
IP65
|
|
Note
|
1, Diameter: 15mm, 30mm, 50mm
2, Length: 0.5m, 1m, 1.5m, 2m
3, Voltage: 12V, 15V, 24V
|
|
Model NO.
|
LED-3DT14SPI3208
|
LED-3DT14SPI6416
|
LED-3DT14SPI9624
|
LED-3DT14SPI12832
|
|
Diameter
|
14mm
|
14mm
|
14mm
|
14mm
|
|
Length
|
500mm
|
1000mm
|
1500mm
|
2000mm
|
|
Color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
|
LED QTY
|
32LEDs
|
64LEDs
|
96LEDs
|
128LEDs
|
|
Pixel QTY
|
8 Pixels
|
16 Pixels
|
24 Pixels
|
32 Pixels
|
|
Tube Qty/Universe
|
20 Tubes
|
10 Tubes
|
7 Tubes
|
5 Tubes
|
|
Voltage
|
DC15V
|
DC15V
|
DC15V
|
DC15V
|
|
Power
|
MAX=8W
|
MAX=16W
|
MAX=24W
|
MAX=32W
|
|
Protocol
|
SPI
|
SPI
|
SPI
|
SPI
|
|
Protection
|
IP65
|
|
Note
|
1, Diameter: 15mm, 30mm, 50mm
2, Length: 0.5m, 1m, 1.5m, 2m
3, Voltage: 12V, 15V, 24V
|

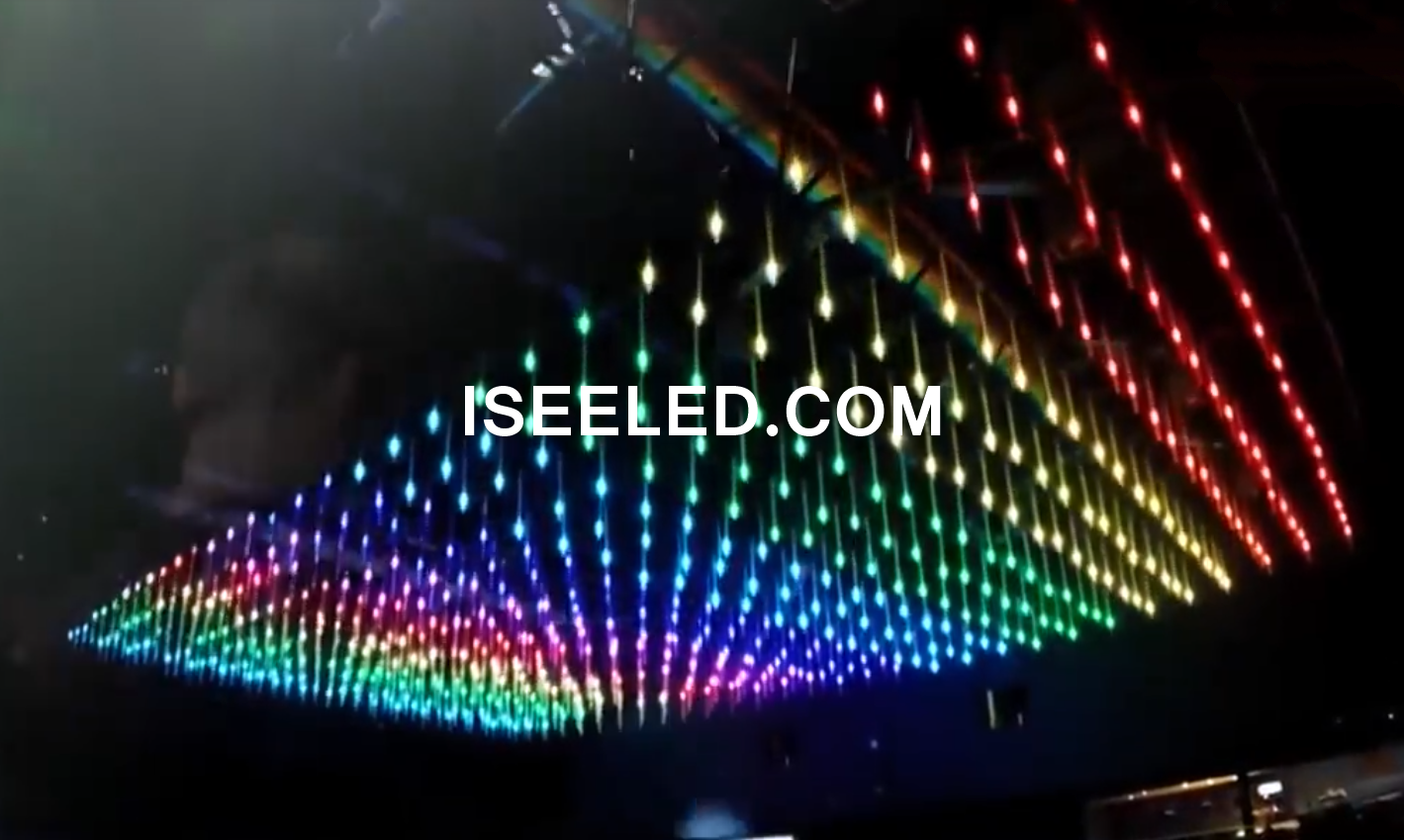

Photos of 15MM Diameter 360 Degree Magic Vertical RGB Tube
Packaging & Shipping of 15MM Diameter 360 Degree Magic Vertical RGB Tube
