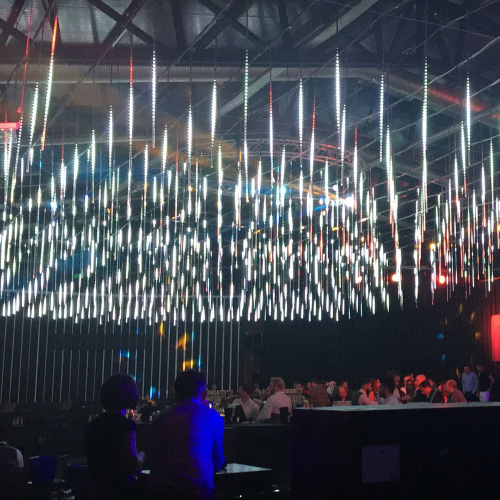

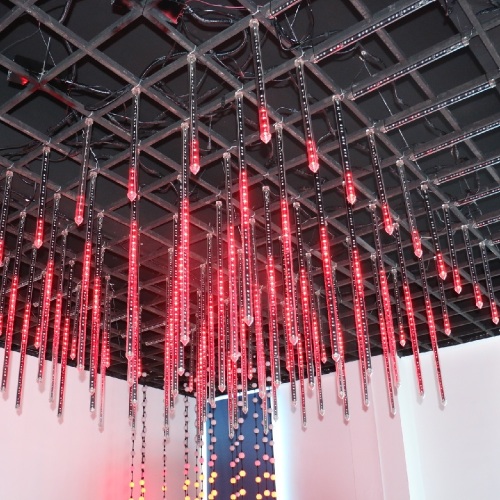

RGB color changing 3D tube light is popular for disco club, it's easy to make 3D led matrix.
1, DMX512 3D disco tube light matrix is 360 degree viewing, it can display 3D animations.
2, Madrix led disco light tube can be DMX or SPI control, each pixel of 3D led tube is programmable.
3, RGB dimmable disco tube light is full color, compatible with Madrix, sync with music.
4, Clear housing, milky housing, silver housing, and gold housing 3D disco tubes are available.
5, OEM/ODM DMX 3d led tube light is offered.
|
Model NO.
|
LED-3DT30DMX3208
|
LED-3DT30DMX6416
|
LED-3DT30DMX9624
|
LED-3DT30DMX12832
|
|
Diameter
|
30mm
|
30mm
|
30mm
|
30mm
|
|
Length
|
500mm
|
1000mm
|
1500mm
|
2000mm
|
|
Color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
|
LED QTY
|
32LEDs
|
64LEDs
|
96LEDs
|
128LEDs
|
|
Pixel QTY
|
8 Pixels
|
16 Pixels
|
24 Pixels
|
32 Pixels
|
|
Tube Qty/Universe
|
20 Tubes
|
10 Tubes
|
7 Tubes
|
5 Tubes
|
|
Voltage
|
DC15V
|
DC15V
|
DC15V
|
DC15V
|
|
Power
|
MAX=8W
|
MAX=16W
|
MAX=24W
|
MAX=32W
|
|
Protocol
|
DMX512
|
DMX512
|
DMX512
|
DMX512
|
|
Address Setting
|
Manually
|
Manually
|
Manually
|
Manually
|
|
Protection
|
IP65
|
IP65
|
IP65
|
IP65
|
|
Note
|
1, Diameter: 15mm, 30mm, 50mm
2, Length: 0.5m, 1m, 1.5m, 2m
3, Voltage: 12V, 15V, 24V
|
|
Model NO.
|
LED-3DT30SPI3208
|
LED-3DT30SPI6416
|
LED-3DT30SPI9624
|
LED-3DT30SPI12832
|
|
Diameter
|
30mm
|
30mm
|
30mm
|
30mm
|
|
Length
|
500mm
|
1000mm
|
1500mm
|
2000mm
|
|
Color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
■■■ RGB full color
|
|
LED QTY
|
32LEDs
|
64LEDs
|
96LEDs
|
128LEDs
|
|
Pixel QTY
|
8 Pixels
|
16 Pixels
|
24 Pixels
|
32 Pixels
|
|
Tube Qty/Universe
|
20 Tubes
|
10 Tubes
|
7 Tubes
|
5 Tubes
|
|
Voltage
|
DC15V
|
DC15V
|
DC15V
|
DC15V
|
|
Power
|
MAX=8W
|
MAX=16W
|
MAX=24W
|
MAX=32W
|
|
Protocol
|
SPI
|
SPI
|
SPI
|
SPI
|
|
Protection
|
IP65
|
|
Note
|
1, Diameter: 15mm, 30mm, 50mm
2, Length: 0.5m, 1m, 1.5m, 2m
3, Voltage: 12V, 15V, 24V
|
